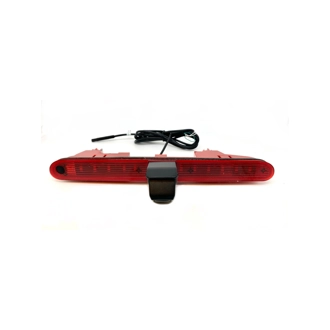

This camera fits so well it looks like original equipment. And provides a unique solution for operators requiring a high quality rear view camera solution that also has the benefit of looking, without doubt the most aesthetically pleasing product available on the market.
Features
- 12 Months Warranty
- Sensor: PC3089 1/3"
- TV system: PAL
- Effective Pixel: 500×582 pixels
- Resolution: 420TV lines
- Weather protection: IP68
- Sensing angle: 160°
- Minimum lighting: 0.1Lux
- Signal-to-noise ratio:> 48dB
- Image display: mirror
- White balance: automatically
- Operating temperature from -30 °C to + 70 °C
- Video output: 1.0V / 75 Ohm
- Power supply: 12V DC
The camera comes with a 10 metre extension cable and DIN to RCA cable adaptor, allowing trouble free installation to suit even the longest wheelbase models. You need to unscrew your current brake light housing to replace it with this one and screw in the bulb to maintain the brake light functionality. Then you just need to wire the camera to a reversing light feed to switch it on when you select reverse gear.
Includes
- 10m Video Extension Cable
- 1.5m Power Supply Lead
- 35cm Composite to Phono/RCA Adaptor Cable
- Pre-fitted Sealing Gasket
You can buy the camera on its own or, in addition, we also offer a range of monitor solutions depending on your needs and budget. All our range of cameras and monitors are compatible with each other so you just need to decide if you want a dash mounted or mirror mounted monitor - if you have a rear view mirror present - and the screen size.
Maintenance
No routine maintenance or adjustment is required. Dirt, frost or snow accumulated on the camera may be cleaned off carefully with a soft cloth. Do not use chemicals or spirits. Applying hot water in frozen conditions may damage the camera. The camera can be washed carefully with warm soapy water.
