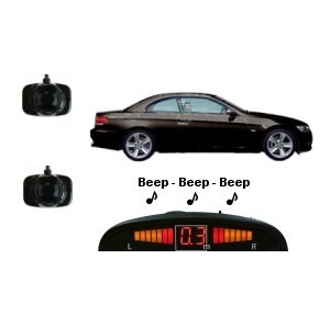

If you are looking for an easy DIY parking sensor system then these adhesive sensors maybe just what you are looking for. These sensors stick onto the rear of the car so you do not need to drill holes in the bumper, but they work just the same as traditional ultrasonic sensors.
These adhesive parking sensors are available in Black or Silver. We recommend fitting them on the bumper or rear light cluster near where the boot opening is so you can tuck the wires into the car close to where you mount the sensors. These are then just a 2 wire connection to the white reversing light for power and to the chassis of the vehicle to earth the system. The brain box and a loud audio buzzer both mount in the boot.| Kit Contents
|
How it works
The system
| Stage | Distance | Awareness | Alarm |
| 1 | 200 - 160cm | Safe Mode | No |
| 2 | 150 - 100cm | Safe Mode | Bi----Bi----Bi |
| 3 | 90 - 50cm | Alarm Mode | Bi--Bi--Bi |
| 4 | 40 - 30cm | Danger Mode | Bi-Bi-B |
| 5 | 30 - 0cm | Stop | Bi---------- |
Technical Specification
- Rated voltage (range) DC12V
- Power 3.6W
- Detecting Angle H>60, V>60 degreese
- Detection Distance 0.3~2m
- Sensor Frequency 315MHz/433MHz
- Working temperature of control box -20 ~+70
| Some Useful Measurement Information (measurements are approximate and not guaranteed) | |
| Component | Length x Width x Depth |
| Size of Buzzer | 59mm x 40mm x 17mm |
| Size of Processor | 96mm x 68mm x 26mm |
| Size of Ultrasonic Adhesive Sensors | 30mm x 40mm x 18mm |
| Length of Sensors Cabling | 2m |
| Length of Cabling for Buzzer | 2m |
 |
Maintenance
No routine maintenance or adjustment is required. Dirt, frost or snow accumulated on the sensors may cause the system to activate incorrectly. Clean carefully with a soft cloth. Do not use chemicals or spirits. Applying hot water in frozen conditions may damage the sensors. The sensors can be washed carefully with warm soapy water
