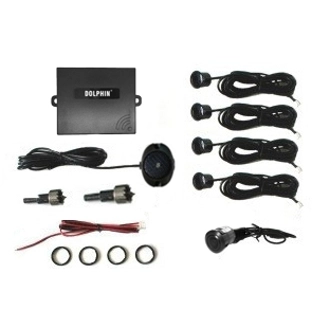

Kit Contents
- 4 Recess Bumper Fit Sensors
- 1 Control Unit
- 1 Colour Camera
- 1 Piezo Buzzer Unit
- 1 Cutting Tool for sensors
- 1 Cutting Tool for Camera
- Fitting Accessories
- Instruction Manual
How it works
The system works by radiating ultrasonic beams covering the area behind the vehicle. The beams are reflected by obstructions behind the vehicle, and re-enter the sensors. The reflected beam information is processed to calculate the distance of the obstruction.
As with the other systems the Dolphin unit is activated when reverse gear is engaged. As the vehicle is reversed. When the vehicle is less than 1.5 metres from the obstruction the audible alert will emit intermittent bleeps. As the vehicle gets closer to the obstruction the frequency of the bleeps increases. At 30 centimetres from the obstruction the bleeps become a continuous solid tone.
| Stage | Distance | Awareness | Alarm |
| 1 | 200 - 160cm | Safe Mode | No |
| 2 | 150 - 100cm | Safe Mode | Bi----Bi----Bi |
| 3 | 90 - 50cm | Alarm Mode | Bi--Bi--Bi |
| 4 | 40 - 30cm | Danger Mode | Bi-Bi-B |
| 5 | 30 - 0cm | Stop | Bi---------- |
Optional Wedge Included
This system comes with an optional wedge, giving greater flexibility according to the shape of your bumper. The wedge can be used if your bumper is slightly angled up- or downwards, to ensure the sensor's signal is still sent out parallel with the road's surface. If your bumper is vertical, then the wedge can be removed to flush-mount the sensors instead.
| Technical Specification
|  |
| Some Useful Measurement Information (measurements are approximate and not guaranteed) | |
| Component | Length x Width x Depth |
| Size of Buzzer | 59mm x 40mm x 17mm |
| Size of Processor | 96mm x 68mm x 26mm |
| Size of Ultrasonic Recess Sensors | 22mm x 22mm x 25mm |
| Diameter Size For Drilling Sensors | 21mm (Drill Bit Supplied) |
| Diameter Size For Drilling Camera | 18.5mm(Drill Bit Supplied) |
| Size of Recess Camera | 24mm Diameter 35mm Deep |
| Length of Cabling for Sensors | 2m |
| Length of Cabling for Buzzer | 2m |
| Length of Power Cable to Camera | 1.8m |
Maintenance
No routine maintenance or adjustment is required. Dirt, frost or snow accumulated on the sensors may cause the system to activate incorrectly. Clean carefully with a soft cloth. Do not use chemicals or spirits. Applying hot water in frozen conditions may damage the sensors. The sensors can be washed carefully with warm soapy water
